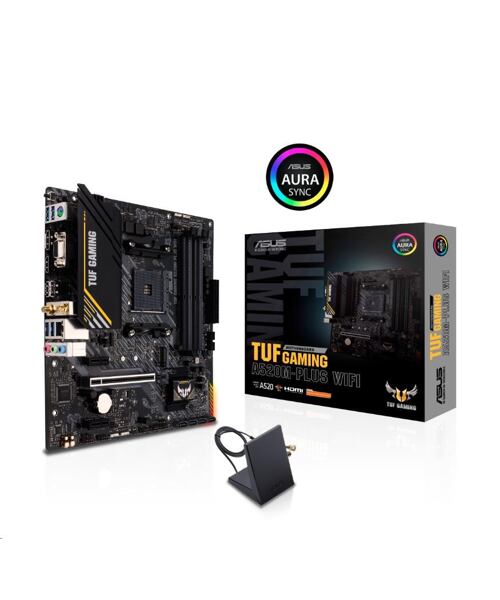

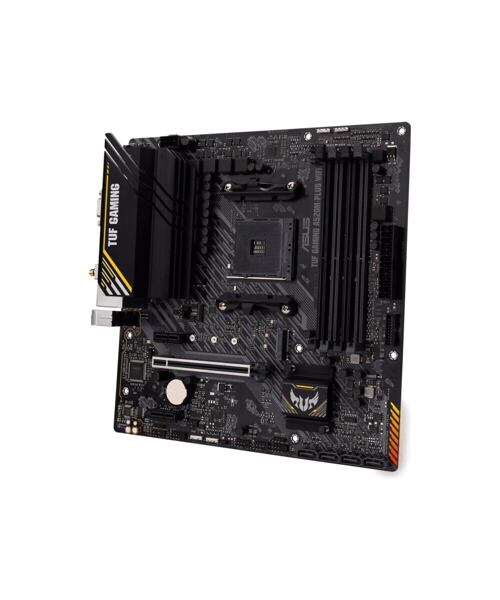

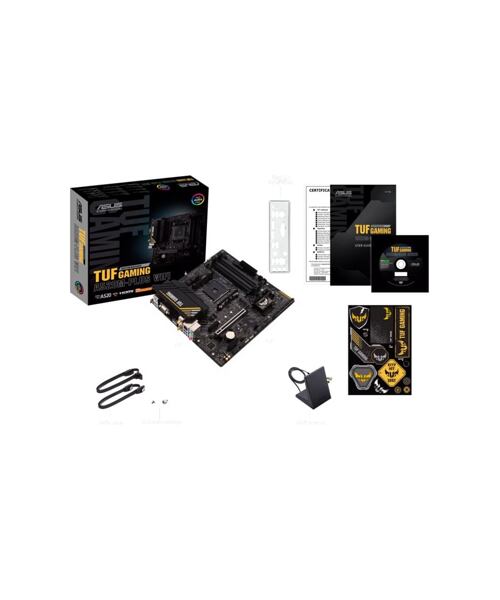

ASUS TUF GAMING A520M-PLUS WIFI/AM4/mATX

Chipset: AMD A520
Rozměrový formát: microATX (24.4cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC
Grafické výstupy: (na základě procesoru)
*1 x DisplayPort 1.2
*1 x HDMI 2.1(4K@60Hz)
*1 x D-Sub
Zvuková karta: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Síťová karta:
*1 x Realtek 1Gb Ethernet
*Wi-Fi 5 (802.11 a/b/g/n/ac)
*Bluetooth v5.0
Rozšiřující sloty:
*1 x PCIe 3.0 x16 slot (supports x16 mode)
*2 x PCIe 3.0 x1 slots
RAID řadič: RAID 0, 1, 10
SATA: 4 x SATA 6Gb/s ports
M.2: 1 x M.2 slot
USB:
*
Interní:
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 3 USB 2.0 ports
*
Externí:
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
Interní porty:
*
Fan and cooling related
*1 x 4-pin CPU Fan header
*2 x 4-pin Chassis Fan headers
*
Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*
Storage related
*1 x M.2 slot (Key M)
*4 x SATA 6Gb/s ports
*
USB
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 3 USB 2.0 ports
*
Miscellaneous
*2 x AURA Addressable Gen 2 header Neous
*2 x AURA RGB headers
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x S/PDIF Out header
*1 x Speaker header
*1 x SPI TPM header (14-1pin)
*1 x 10-1 pin System Panel header

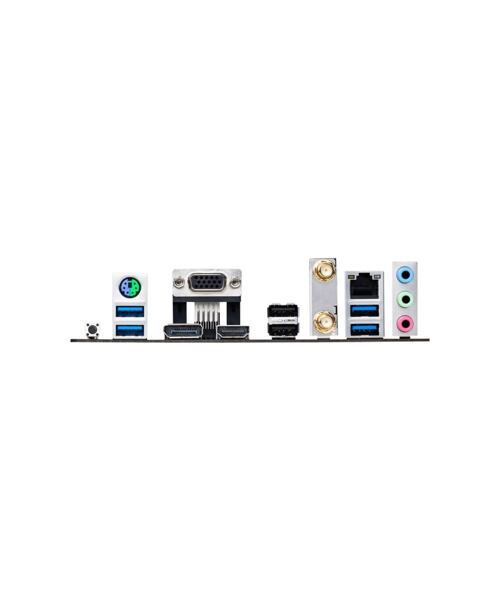

Externí porty:
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x D-Sub
*1 x ASUS Wi-Fi Module
*1 x Realtek 1Gb Ethernet port
*3 x Audio jacks
*1 x BIOS FlashBack button
*1 x PS/2 Keyboard/Mouse combo port
BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
