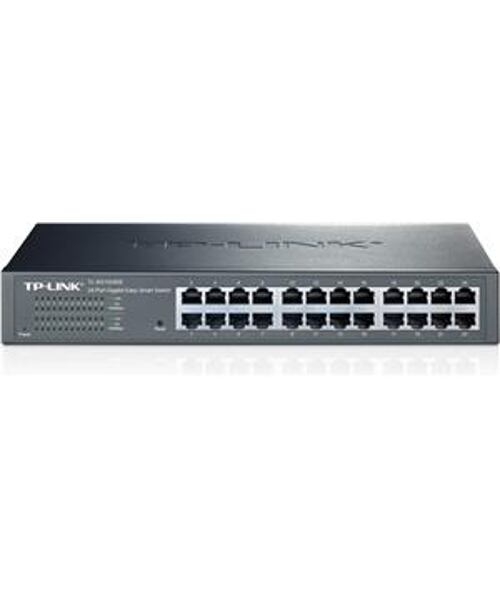

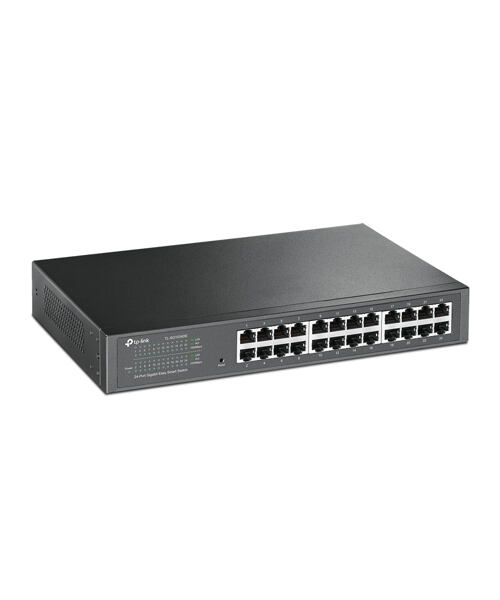

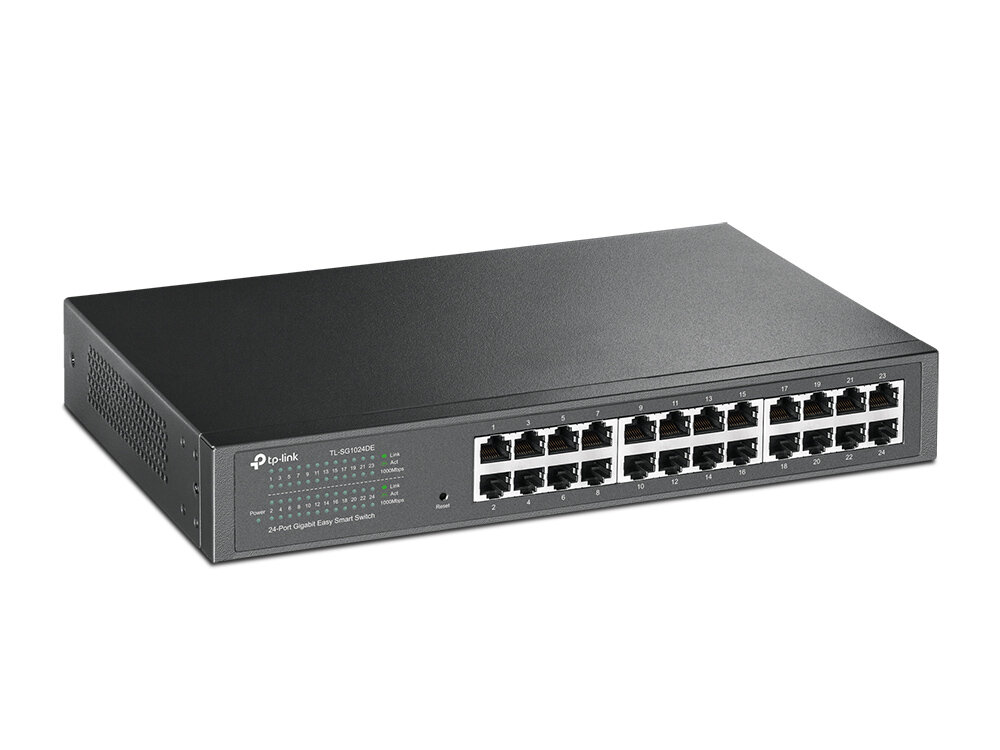

TP-Link TL-SG1024DE 24x Gigabit Fanless Easy Smart Switch

24-Port Gigabit Easy Smart Switch TL-SG1024DE
OVERVIEW The TL-SG1024DE 24-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1024DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1024DE can save up to 40% of power consumption, making it an eco-friendly solution for your business network.
HARDWARE FEATURES Standards and Protocols • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface • 24 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) Dimensions (W X D X H) • 294
*180
*44 mm Fan Quantity • Fanless Power Supply • 100-240VAC, 50/60Hz
PERFORMANCE Switching Capacity • 48Gbps MAC Address Table • 8K Packet Buffer Memory • 512KB Packet Forwarding Rate • 35.7Mpps Jumbo Frame • 10240Bytes
SOFTWARE FEATURES Quality of Service • Support Port Based/802.1p Based priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping • Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention VLAN • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN Transmission Method • Store-And-Forward
OTHERS Certification • FCC, CE Package Contents • TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet System Requirements • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. Environment • Operating Temperature: 0?~40? • Storage Temperature: -40?~70? • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
